LoD Jeep Front Bumper, Winch Plate and Nose Guard

LoD Jeep Front Bumper Winch Plate and Nose Guard


Here's a pic of the LoD front bumper. I chose to get a "Shorty" bumper which only measures 44" instead of the standard 54"
As you can see in this pic, the LoD front bumpers come with light tabs and D-Ring mounts
If you have them, remove the nut securing your Jeep's factory fog lights using a 13mm wrench

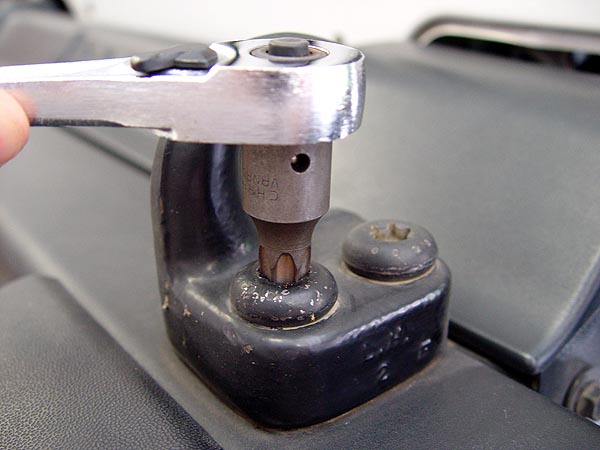

Using a Torx T-55 bit, remove the 4 upper bolts securing your bumper and tow hooks to your frame rails
Again, using a Torx T-55 bit, remove the 2 lower bolts securing your bumper and tow hooks to your frame rails
Slide on your new LoD front bumper on to your frame and secure it using your factory bolts
Fasten your new LoD Front Bumper, winch plate and/or Nose Guard to 80 ft. lbs of torque
Here's a shot of my Jeep with the optional bolt on nose guard and winch plate all installed
Are the shackle mounts strong enough being only surface welded? Well, it was strong enough to pull out this very stuck full size Chevy out of the mud

LoD Heavy Duty Jeep Front Bumper/Winch Plate
& Bolt-On Nose Guard
1987-2006 Jeep TJ & YJ Wrangler

The LoD Heavy Duty Front Bumper is the perfect compliment to your LoD Rear Bumper/Tire-Carrier and is just as affordable too. The LoD bumper is available in a standard 54" length and also in a shorty 44" version. Both bumpers come standard with D-Ring mounts, light tabs and a durable semi-gloss black powder coat finish. LoD also offers either bumper with an optional 1/4" thick steel winch plate that is welded directly on to it. For those of you who already have an LoD front bumper or would just like to add a winch to their factory Jeep bumper, the LoD winch plate is also available for sale as a separate bolt on unit.

Along with the new front bumper and winch plate, LoD also offers 2 different style bolt-on Nose Guards (Standard and Predator) that will work on factory Jeep bumpers and just about any aftermarket bumpers available today.

NOTE: Main photo shown with optional LoD winch plate, nose guard and D-rings. Fog lights, T-Max Winch and Off Road Only aluminum hawse fairlead not included.

What You Need

• LoD Heavy Duty Jeep Front Bumper (Standard=54" or Shorty=44")
• LoD Winch Plate (or combo setup)
• LoD Nose Guard (Standard or Predator)
• 1/2", 13mm Socket/Wrench
• Torx Bit T-55
• Ratchet
• Torque Wrench

Installation

1. If you have factory fog light like my Jeep has, these will need to be removed prior to pulling your bumper off. To do this, you will need to look underneath the inside of your bumper and remove the single 13mm nut securing the fog light. With the nut off, simply lift up your fog light and allow it to dangle from it wiring harness.

2. Using a Torx T-55 Bit, remove the 4 upper bumper bolts (2 on either side) which also secures your Jeep's tow hooks if you've got them. If you've never removed these bolts before, it may take some effort to do and stripping a Torx head is nothing but bad news. Try applying some PB Blaster to the bolts and use a breaker bar to crack them loose.

3. Now, look underneath your Jeep's front bumper and remove the 2 bottom bolts (1 on each side) using the same Torx T-55 Bit. Again, pay special attention to not strip the head of the bolt. PB Blaster and a breaker bar should do the trick well.

4. With all the bolts removed, your factory Jeep bumper should slide off the frame with ease.

5. Now, grab your new LoD Front Bumper and slide it onto your frame rails.

7. If you purchase a LoD Nose Guard along with your Front Bumper, place it on top of bumper mounting plate and hand thread the factory Torx Bolts to hold them the two in place. If you have or purchased a separate winch plate, place it on top of the bumper mounting plate and then then nose guard on top of it.

8. Fasten your new LoD Front Bumper, winch plate and/or Nose Guard to 80 ft. lbs of torque.

9. Re-attach your Jeep's fog lights using the mounting tabs provided by LoD.

That's it, you're done!! Your Jeep now has an awesome new LoD front bumper and nose guard!!

Additional Photos


LoD Front Bumper & Winch Plate Side View	LoD Front Bumper & Winch Plate Front View	LoD Front Bumper & Winch Plate Back View

LoD Winch Plate Side View	LoD Winch Plate Front View	LoD Winch Plate Back View

LoD Shorty 44" Front Bumper/Winch Plate & Nose Guard Installed	Front View	View of entire Jeep

Profile View of the LoD Nose Guard	Here's a pre-finished shot of the Standard 54" LoD front bumper	This is what the Predator Nose Guard will look like (photo shown is unfinished)
NOTE: This write-up has been provided as a reference only. 4x4xplor.com and/or its author are not responsible for any errors, incorrect or missing information. LoD is solely responsible for the quality of all their products.
